Planning Your Built-In Dining Bench
Measure your dining area carefully. Decide on bench length, height (typically 18 inches), depth (usually 15-18 inches), and shape (straight or corner L-shape). Sketch a design showing dimensions and relation to the dining table (allow at least 12 inches clearance between table edge and bench back). Identify wall stud locations.
Essential Materials & Tools:
- Lumber: 2x4s for frame, 3/4-inch plywood for seat/back/base, 1x4 or 1x6 for face frame/trim.
- Fasteners: 2.5-inch & 1.25-inch wood screws, finish nails, 3-inch lag bolts/ledger screws.
- Supplies: Wood glue, wood filler, sandpaper (120/220 grit), primer, paint/stain, polyurethane.
- Tools: Tape measure, level, stud finder, circular saw/miter saw, drill/driver, hammer/nail gun, screwdriver, clamps, safety glasses, dust mask.

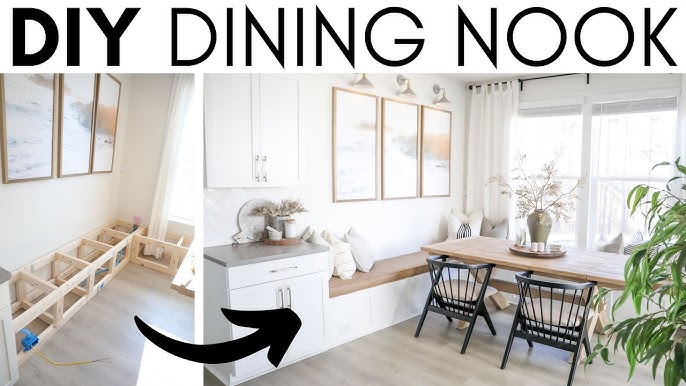

Building the Bench Frame
Construct the Base Frame: Assemble a rectangular frame from 2x4s matching your bench length and depth minus plywood thickness. Secure corners with 2.5-inch screws and wood glue.
Install Wall Ledger: Cut a 2x4 ledger board to length. Screw it directly into wall studs using 3-inch lag bolts, ensuring it is perfectly level at the bench seat height minus plywood thickness.
Install Vertical Supports: Place the base frame under the ledger board. Install vertical 2x4 legs/supports between the base frame and the ledger at 16-inch intervals. Secure with screws and glue.
Add Seat & Back Supports: Run horizontal 2x4s perpendicular between the ledger board and the front of the frame (seat supports). Add vertical blocking between the ledger and seat supports for the bench back. Ensure everything is level and square.
Installing the Seat, Back & Panels
Measure and cut the plywood panels accurately.
Attach Seat Panel: Secure plywood to the seat frame using 1.25-inch screws every 6-8 inches. Countersink screw heads.
Attach Back Panel: Secure plywood to the back framing/ledger using screws as above.
Attach Base/Kick Panel: Secure plywood to the front and sides of the base frame (if applicable).
Finishing the Bench
Build Face Frame (Optional): Cut 1x4 or 1x6 boards to frame the visible front and ends. Miter corner joints or butt joints. Attach with wood glue and finish nails.
Fill & Sand: Fill all screw holes, gaps, and nail holes with wood filler. Sand the entire bench thoroughly, progressing to 220 grit.
Paint/Stain & Seal: Apply primer. Once dry, apply at least two coats of paint or stain. Finish with a protective clear coat like polyurethane, especially for the seat surface.
Pro Tips:
- Pre-drill all screw holes to prevent splitting.
- Incorporate hidden storage by leaving openings in the base frame and adding lift-up seat panels with hinges.
- Add cushioned upholstered seat pads for comfort.
- Ensure frame anchoring into wall studs is extremely robust.
